Flysky I6S AFHDS 2A Touch Screen 10-Channel Air Radio System w/iA10B Receiver FSY-I6S+IA10B
Touch Screen User-Friendly Air Transmitter
The Flysky I6S AFHDS 2A Air Radio System is a powerful and user-friendly 10-channel transmitter designed for precision control of airplanes, helicopters, and multicopters. Featuring a modern capacitive touch screen and high-resolution signal processing, it delivers smooth, accurate response across a wide operating range. Its advanced AFHDS 2A protocol ensures reliable, interference-resistant performance while maintaining exceptionally low power consumption. With broad sensor compatibility and flexible setup options, the I6S is an excellent choice for both new and experienced pilots.
About the Air Radio System
Low Power Design With Extended Battery Life
The I6S is built using highly sensitive, low-power components that dramatically reduce energy consumption without sacrificing performance. This efficient design consumes only a fraction of the power used by traditional FM systems, significantly extending battery life. A built-in low-voltage alarm provides added safety by alerting users before power levels become critical. The result is longer operating time and consistent, dependable control.
Advanced AFHDS 2A Signal Technology
Utilizing AFHDS 2A with multi-channel hopping frequency technology, the I6S operates across 140 channels within the 2.4GHz band to minimize interference. The system continuously hops between channels to maintain a stable, reliable connection even in crowded RF environments. Dual built-in omnidirectional high-gain antennas further enhance signal integrity while keeping power usage low. This combination ensures confident control at all times.
Touch Screen Interface & Bidirectional Telemetry
The capacitive touch screen provides an intuitive and modern interface for quick setup and adjustments. Bidirectional communication allows the transmitter to both send and receive data, supporting telemetry inputs such as temperature and altitude sensors, servo calibration, and i-BUS connectivity. A unique ID recognition system ensures that once paired, the transmitter and receiver communicate exclusively with each other. This enhances operational safety and prevents accidental interference.
Features:
- 10-Channel AFHDS 2A System
- Capacitive Touch Screen Interface
- Low Power Consumption Design
- Multi-Channel Hopping Frequency
- Dual Built-In High-Gain Antennas
- Bidirectional Telemetry Support
- Unique Transmitter And Receiver ID
- USB Simulator Compatibility
- 4096 Resolution Control Precision
- Mode 1–4 Switchable Operation
Includes:

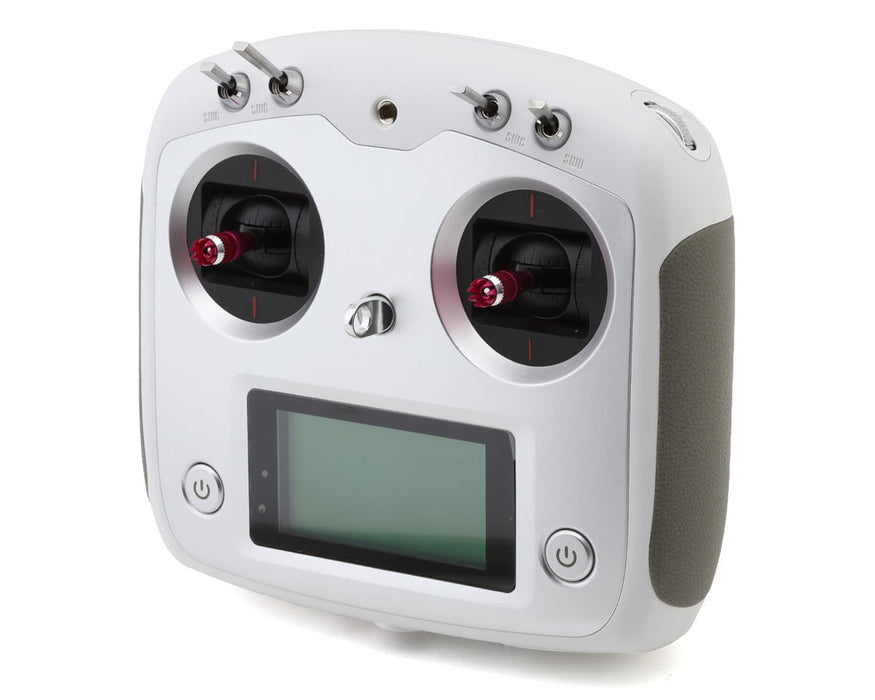

- (1) Flysky FS-i6S Transmitter
- (1) Flysky FS-iA6B Receiver
- (1) Upgrading Cable
- (1) Binding Plug
- (1) Throttle Slider w/Hardware
Needed To Complete:
- (4) AA Alkaline Batteries
Specifications:
Voltage Range4 x 1.5V AA BatteriesOperating Frequency2.4GHzChannels10Radio FirmwareFlyskyProtocolAFHDS 2ADimensions (LxWxH)7.05x3.19x6.34in (179x81x161mm)Weight14.46oz (410g)
