DOCYKE 550kg High Torque RC Servo, 2 in 1 Servo and Motor 16V~24V High Voltage Full Metal Gear Digital Servo

DOCYKE 550kg High Torque RC Servo, 2 in 1 Servo and Motor 16V~24V High Voltage Full Metal Gear Digital Servo

SKU DCY-550KG-SM
Sold out
$159.99 - $159.99
$159.99
$159.99
$159.99 - $159.99
$159.99



  •  High Torque Servo: 16V-24V (Rate 18V). Speed ( 18v): 0.24s/60°. Max  Torque: 550kg.cm ; Rated torque: 180kg.cm ; Angle range: 0-360° ; Input  signal: PWM: 50us ~ 2200us, 50-400Hz.
  •  High Quality Servo: Magnetic encoder feedback, high repeatability; High  hardness steel planetary gear transmission, High durability;  Overcurrent protect; jam protection; could double-shaft positioning: one  is the driving shaft, one is the assistant shaft.
  •  Servo Size: L：143mm; W：66mm; H：58m. Weight:600g.Product included: 550kg  Servo*1, Accessories: big Bracket *2,small Bracket *2,cable*1
  •  Widely Use Servo: You can use like normal Servo or motor, DIY an  advanced robot, robotic arms, PTZ cameras, Remote control vehicle, and  other mechanical projects. At Motor Mode, you can use like wheel-drive,  or DC motor. It can perfectly compatible with for Futaba, for JR, for  SANWA, for Hitec and other remote systems and Arduino PCB

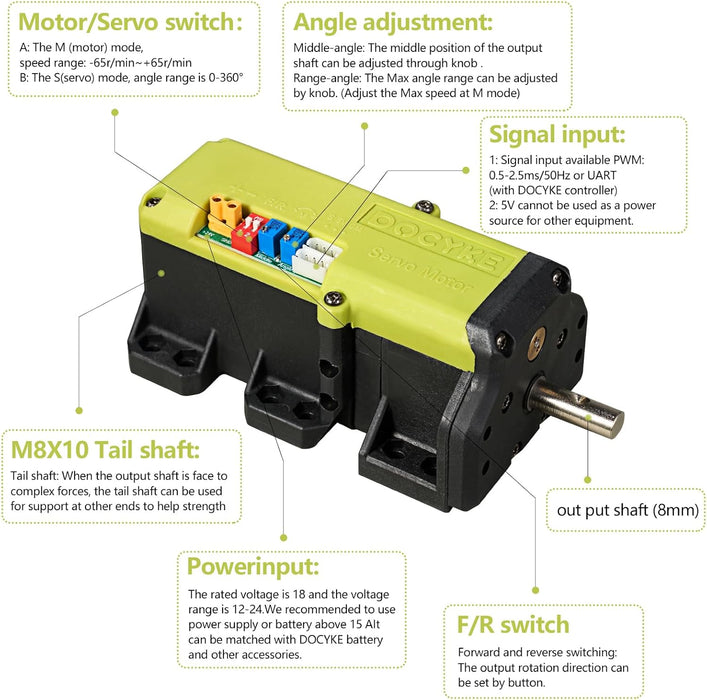

  •  Two modes: servo position and motor drive, which is selected by a DIP  switch. In servo mode the shaft rotation can move 0-360 degrees for 0.5  to 2.5 uSec pulse width. There are gain and offset potentiometers to  calibrate the motion over any standard servo range. There is also a  reversing DIP switch to change the sense of the rotation.
  • NOTE! As this is a high-power servo, so a high-power power supply (16-24V, 25A) is required, We recommend using 20V battery.
