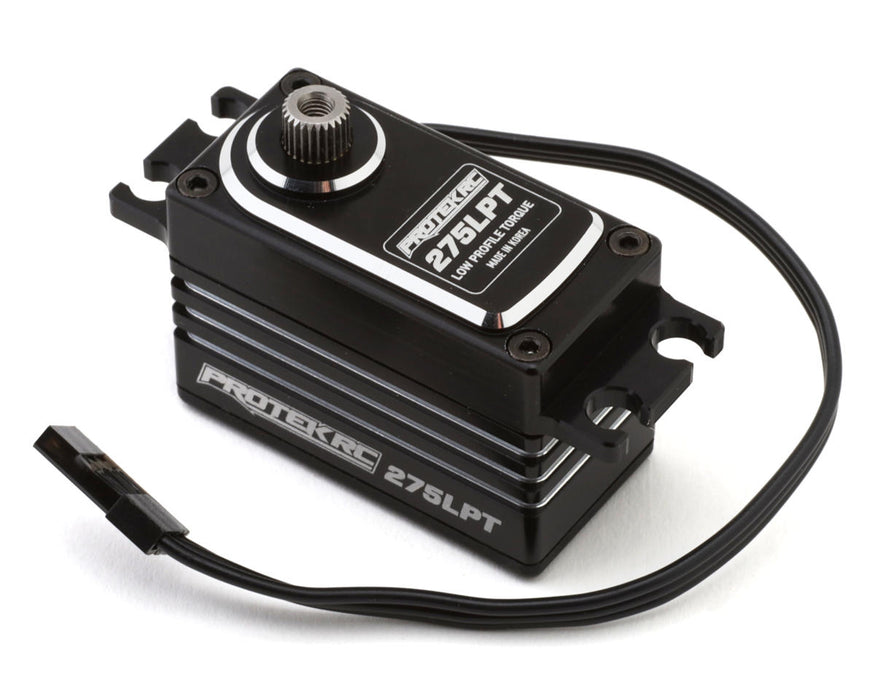

ProTek RC 275LPT Low Profile High Torque Metal Gear Servo (HV/Metal Case) PTK-275LPT
Take control with the ProTek R/C 275LPT Low Profile High Torque Servo, combining race-proven reliability, powerful high-voltage torque, and durable all-metal construction to deliver precise steering in every lap! Backed by a Lifetime Gear Warranty through Amain Hobbies for added confidence and durability.
About the ProTek RC 275LPT Low Profile Servo
High Torque Output
The ProTek R/C 275LPT Low Profile High Torque Metal Gear Servo is engineered for drivers who need exceptional steering authority without sacrificing precision. Producing up to 274 oz-in of torque and a 0.06-second transit speed on 7.4V, it delivers the strength and responsiveness needed for demanding 1/10 and 1/12 scale on-road and off-road racing.
Refined Proven Design
Built as a refined version of the proven and trusted ProTek R/C PTK-160T servo, the 275LPT combines dependable performance with a compact low-profile design. Its full aluminum case, coreless motor, hardened metal gears, and dual ball bearings provide outstanding durability, smooth operation, and consistent performance throughout every race.
Race Ready Performance
Designed for serious racers, the 275LPT includes a durable aluminum single-arm servo horn, blue aluminum servo ear guides for increased mounting rigidity, and high-quality gold-plated connectors. With high-voltage compatibility, premium construction, and exceptional torque, it is an excellent all-around servo for competitive club racing and high-performance RC applications.
Features:
Lifetime Gear Warranty Backed by Amain Hobbies
Low-profile design fits most 1/10 scale vehicles
Delivers up to 274 oz-in of torque at 7.4V
Provides fast 0.06-second transit speed at 7.4V
High-voltage circuitry supports powerful performance
Full aluminum case improves durability and heat dissipation
Full metal gears provide long-lasting strength
Dual ball bearings deliver smooth operation
Coreless motor provides efficient, responsive control
Includes an aluminum clamping servo horn
Aluminum servo ear guides provide a more rigid and secure installation
Includes:
(1) 275LPT Low Profile High Torque Brushless Servo
(1) Aluminum Clamping Servo Horn
Servo Hardware and Grommets
Specifications:
Application1:10 ScaleOperating Voltage6.0V - 7.4VOperating Temperature14° to 140° F (-10 to +60° C)Operating Speed @ 6.0V0.08/60° secOperating Speed @ 7.4V0.06/60° secDynamic Torque @ 6.0V216oz-in (15.5 kg-cm)Dynamic Torque @ 7.4V274oz-in (19.7 kg-cm)Motor TypeHigh Efficiency Coreless MotorOutput Shaft25TGearsMetal w/Lifetime Gear WarrantyWeight1.92oz (54.5g)Pulse/Frequency1520s / 333hzDimensions1.55x0.79x1.2in (39.5x20x30.3mm)Length (Bottom to Mount)0.75in (19.10mm)
*Tech Note: If you experience glitching or poor performance while using a Futaba transmitter, you must turn off BLS mode. BLS mode is only compatible with Futaba BLS type servos.
