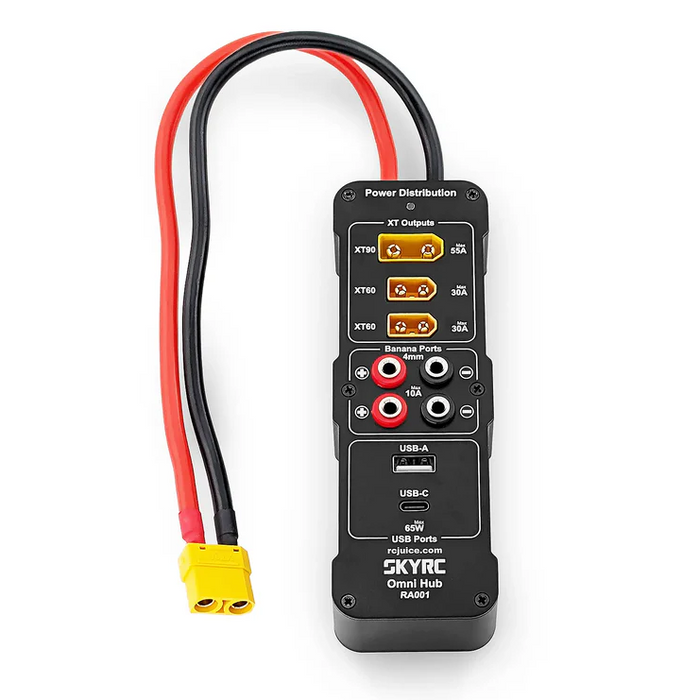

SkyRC SKYRC Omni XT90 Power Distribution Hub 340-10-197

SkyRC SKYRC Omni XT90 Power Distribution Hub 340-10-197

SKU SKY340-10-197
$59.99 - $59.99
$59.99
$59.99
$59.99 - $59.99
$59.99



When the pit bench starts looking like a cable-themed escape room, the SKYRC Omni XT90 Power Distribution Hub brings things back under control. Feed it from a suitable XT90 DC source and power multiple RC chargers, dischargers, battery testing tools, and accessories from one compact hub instead of building a tower of adapters and regret.

The Omni Hub accepts 8-36V DC input with a 55A max input current, then gives you the ports RC people actually use: one XT90-F output rated up to 55A, two XT60-F outputs rated up to 30A, dual 4mm banana socket pairs rated up to 10A, plus USB-C and USB-A charging for the small digital things that also demand electricity like tiny royalty.

USB-C supports up to 65W output, USB-A supports up to 18W, and when both USB ports are used together the shared USB output is limited to 5V/3.6A, 18W max. With the SKYRC eFUEL PSU2000 AC 220-240V version, SKYRC states up to 1980W maximum output power. Power supply sold separately. SKYRC Part Number: SK-600163-01.

Specs

  • Brand: SKYRC
  • Product type: XT90 DC power distribution hub
  • Model: Omni Hub RA001
  • Model number: SK-600163
  • SKYRC part number: SK-600163-01
  • Input connector: XT90
  • Input voltage: 8-36V DC
  • Max input current: 55A
  • XT90-F output: 1 port, 55A max
  • XT60-F output: 2 ports, 30A max
  • 4mm banana sockets: 2 pairs, 10A max
  • USB-C output: 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A, 65W max
  • USB-A output: 5V/3A, 9V/2A, 12V/1.5A, 18W max
  • USB-C + USB-A simultaneous output: 5V/3.6A, 18W max
  • Indicator LED: green LED solid on when powered, LED off when powered off
  • Dimensions: 151x50x29.5mm
  • Weight: approx. 310g
  • Operating temperature: 0C to 40C
  • Operating humidity: 10%-90% RH, non-condensing
  • Storage temperature: -10C to 50C
  • Storage humidity: 20%-65% RH, non-condensing
  • Included items: Omni XT90 Power Distribution Hub and manual

Note: SkyRC references "up to 2000W" stable power distribution when paired with suitable input power. With SkyRC eFUEL PSU2000 AC 220V to 240V version, the stated maximum output power is 1980W. Power supply is sold separately.
